ZERO WASTE PROJECT

Features
-

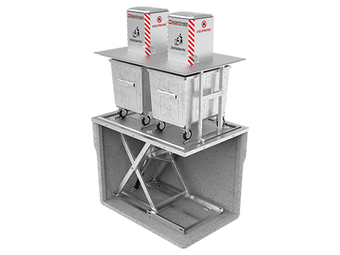

The jack container system allows municipalities to use their existing garbage collection vehicles and allows garbage to be taken underground. It provides an environmentally friendly, aesthetic and modern city furniture appearance as well as easy use. Only the garbage disposal chute is visible above ground, the main containers are underground.
-
It is manufactured in a way that the jacked underground container system is connected to the jacked hose taken from the control of the compression garbage vehicle, and that when the inner container needs to be emptied or the system needs to be operated for any other reason, the garbage containers are lifted to ground level and emptied thanks to the elevator platform.
-
The upper walking platform is made of teardrop-patterned sheet metal that is strong enough for people to walk on it easily.
-
The underground container system is manufactured to European Standards for use with household waste and is designed for long-term use.
-
The chimney of the container will be made of 1.5 mm thick AISI 304 quality Chrome Nickel sheet metal.
-
A remote control system can be added as an option.
-
The concrete socket, which was poured as a single piece, was reinforced with C40 quality and watertight concrete and ribbed rebar were used.
Technical Drawing
